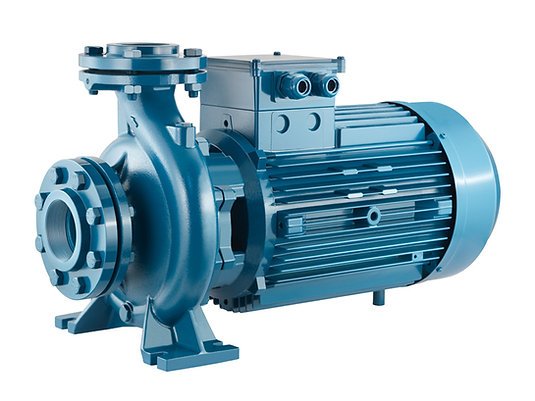

MN40-160A - Monobloc Centrifugal Pump for heating (34.9 m 700 l/min)
Mfr#:
MN40-160A
Prix Sur Demande
Délai de livraison : 45 jours
Livraison estimée le mardi 23 juin
Commandez dans les --. Détails
En stock
Couleur :
cast iron (Std)
Paiements 100% Sécurisés
VISA
Mastercard
PayPal
Orange
Money
Money
Virement
Bancaire
Bancaire
Paiement
Par Chèque
Par Chèque
Description
Construction Features Option
Pump body cast iron
Seal plate cast iron
Impeller cast iron (Std), bronze or stainless steel
Mechanical seal Ceramic-Graphite/NBR
Pump shaft extension stainless steel AISI 304
Liquid temperature -10 ÷ +90 °C
Operating pressure max 10 bar
HP 5.5
kW 4
Ø Mech Seal 28
Flow rate (l/min) 700
H (mt) 34.9
Motor Option
2 poles induction motor 1~ 230/400V-50Hz P ≤ 4kW
3~ 400/690V-50Hz P > 4kW
Insulation class F
Protection degree IP55
Pump body cast iron
Seal plate cast iron
Impeller cast iron (Std), bronze or stainless steel
Mechanical seal Ceramic-Graphite/NBR
Pump shaft extension stainless steel AISI 304
Liquid temperature -10 ÷ +90 °C
Operating pressure max 10 bar
HP 5.5
kW 4
Ø Mech Seal 28
Flow rate (l/min) 700
H (mt) 34.9
Motor Option
2 poles induction motor 1~ 230/400V-50Hz P ≤ 4kW
3~ 400/690V-50Hz P > 4kW
Insulation class F
Protection degree IP55
