Solid & Leak-Proof Design: Our air-operated double diaphragm pump housing is crafted with aluminum alloy and secured with a full-bolted structure, promising an unwavering bond between components for top-notch sealing. Bid farewell to oil lubrication and fear of dry running, and our pump is designed for enduring performance and rigorous, long-term use. Get ready to experience a pump that's as tough as your demands!

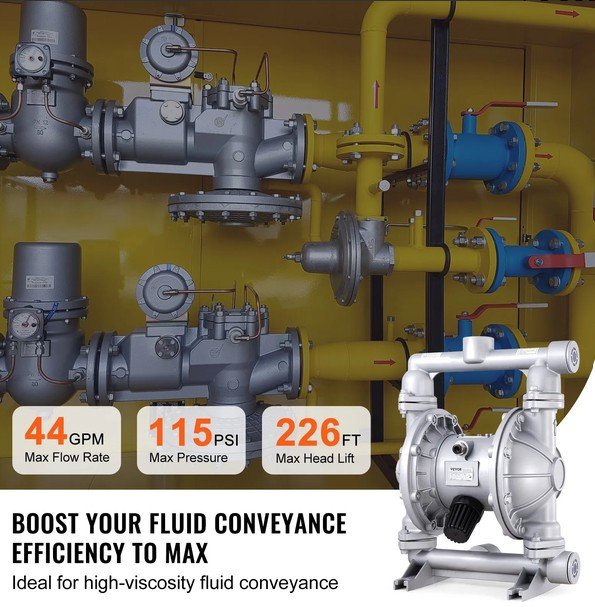

Premium PTFE Diaphragm: Our air operated diaphragm pump features state-of-the-art dual-layer PTFE diaphragms for exceptional corrosion resistance. These diaphragms excel in the harshest environments, handling corrosive fluids with unparalleled efficiency. Max. Flow Rate: 44 GPM. Max. Pressure: 115 PSI. Max. Head Lift: 226 ft/69 m. Ready to experience the difference? Let's power up your productivity!

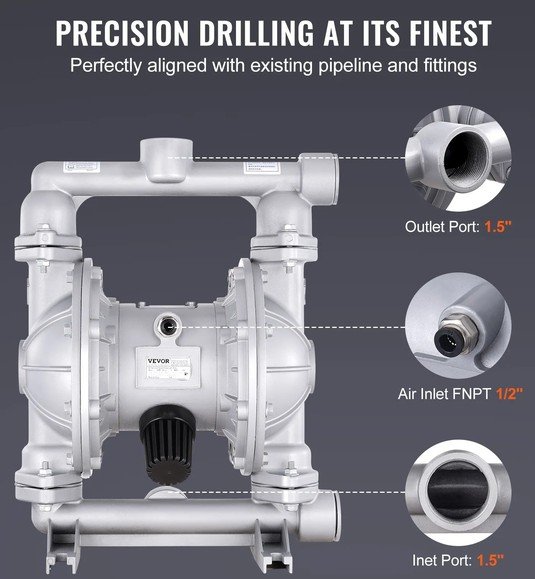

Exceptional Pneumatic Performance: Elevate your fluid handling with our air diaphragm pump! It boasts standard inlet/outlet dimensions of 1.5 inches and an air inlet size of FNPT 1/2 inch, designed to seamlessly integrate with your existing pipelines and fittings, enhancing its pneumatic performance. Embrace the power of professional pneumatic design in your operations today!

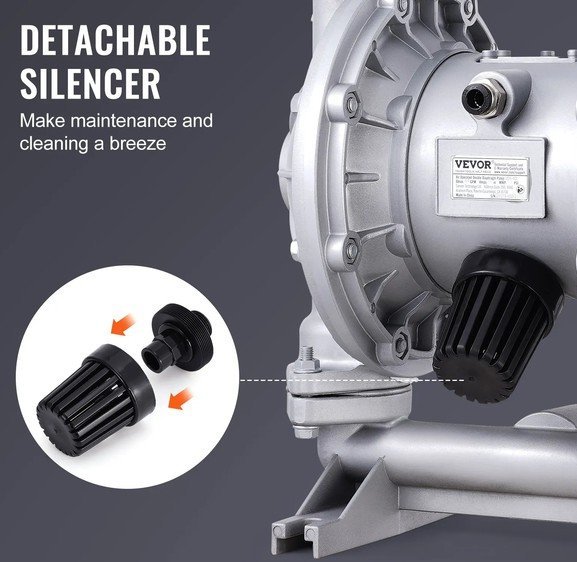

Low Noise Operation: Our air transfer pump comes with an advanced silencer that minimizes noise to the lowest possible level, not only enhances the comfort of your working environment but also significantly reduces vibration and noise impact on the equipment itself, extending its lifespan. The detachable design for effortless maintenance and cleaning reduces your upkeep costs. Enjoy a quieter and more efficient workspace!

Fit for Multiple Fluids: Our waste oil pump is capable of processing a wide array of fluids from waste oil, alcohol, hydraulic oil, gasoline, diesel, and detergents to beverages. Its extensive applications span industries including petroleum, metallurgy, mining, coatings, printing, water treatment, and automotive. Whatever your industry, whatever your fluid, our diaphragm pump is engineered to handle it with

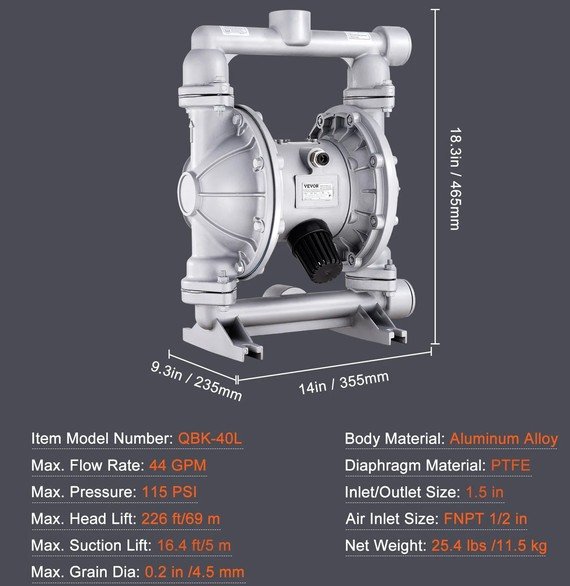

Item Model Number: QBK-40L

Max. Flow Rate: 44 GPM

Max. Pressure: 115 PSI

Max. Head Lift: 226 ft/69 m

Max. Suction Lift: 16.4 ft/5 m

Max. Grain Dia: 0.2 in /4.5 mm

Body Material: Aluminum Alloy

Diaphragm Material: PTFE

Inlet/Outlet Size: 1.5 in

Air Inlet Size: FNPT 1/2in

Net Weight : 25.4 lbs /11.5 kg
